Crash on render if Render Layers image output is connected to a Viewer node AND anything other than a Group Output's first Image item #114
Assignees
Triager-bot
Clear assignees
Triager-bot
No Assignees
Notifications
Due Date
No due date set.
Dependencies
No dependencies set.
Reference: Triager-bot/test#114
Reference in New Issue
Block a user
Delete Branch "%!s()"
Deleting a branch is permanent. Although the deleted branch may continue to exist for a short time before it actually gets removed, it CANNOT be undone in most cases. Continue?
Original bug report: https://projects.blender.org/blender/blender/issues/157183
System Information
Operating system: Windows-10-10.0.19045-SP0 64 Bits
Graphics card: NVIDIA GeForce RTX 3060 NVIDIA Corporation NVIDIA 595.97 Vulkan Backend
Blender Version
Broken: version: 5.1.0, branch: blender-v5.1-release, commit date: 2026-03-16 18:50, hash:
adfe2921d5f3Worked: 5.0.1
Short description of error
Blender will crash if the user attempts to render when the Image output of a Render Layers node is connected to both a Viewer node and a Group Output node, but only if the image is connected to anything other than the Group Output's first Image item. This happens in both Cycles and Eevee. There are various combinations that don't cause a crash (e.g. if the Viewer node isn't connected at all). It needs connections to both the Viewer node and to the Group Output's 2nd, 3rd, or 4th (etc.) input, just not the first Image item.
Exact steps for others to reproduce the error
From an empty scene open up a Compositor editor.

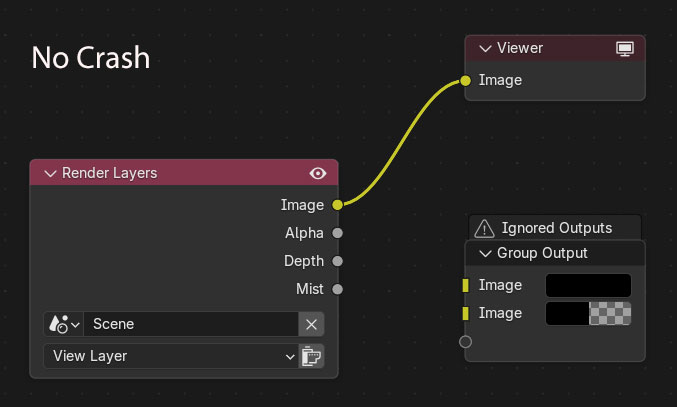

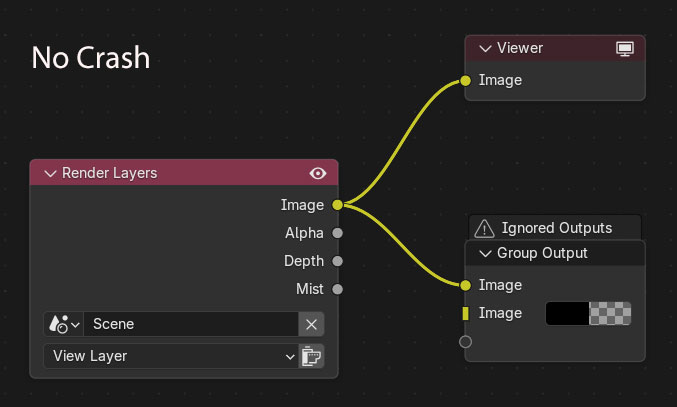

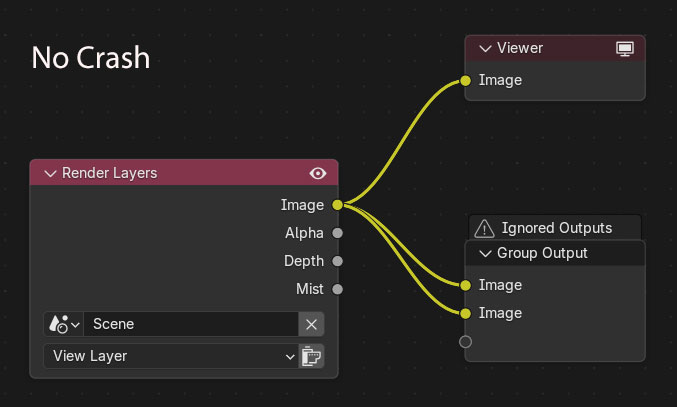

Starting from a completely blank slate, create a Render Layers node, Viewer node and a Group Output node.
Connect the Image output from the Render Layers node to the Viewer node.

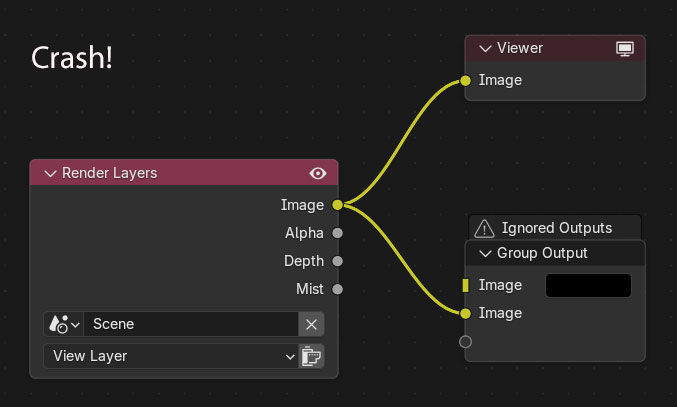

Connect the Image output from the Render Layers node to a 2nd Image item slot in the Group Output node (by dragging onto the new socket input).
Hit render. It will either crash (getting stuck on 100% after the render job is attempting to complete the compositing phase), or if the user manages to cancel before it freezes it will get stuck in the "Cancelling..." phase and the crash will happen when the user attempts to close Blender.
Report is clear
LLM Reasoning
Got it, let's see. The bug report has a clear title, a short description that explains the condition (Render Layers output connected to Viewer AND Group Output not first item), and exact steps to reproduce. The steps are numbered and detailed. So the clarity is good. So the answer should be Yes.
JSON Data
{
"llm_judgement": true,
"processing_time": 5.912025
}
Report is specific
LLM Reasoning
Got it, let's analyze this bug report. The question is whether it's specific or generic.
First, let's recall the definitions: Specific is about a particular issue (like crashing with a specific setup), Generic is vague (like just "crashing while rendering").
Looking at the bug report: It describes a very precise scenario—connecting Render Layers to Viewer and Group Output's 2nd+ input causes crash. The steps are exact, and it specifies which connections lead to the issue. So this is a specific issue because it's about a particular combination of node connections leading to a crash.
So the answer should be 'Specific'.
JSON Data
{
"llm_judgement": true,
"processing_time": 10.030463
}
Report flagged as NOT a duplicate by LLM
Vulkan: Crash when image connected to transform compositor node
https://projects.blender.org/blender/blender/issues/155302
System Information
Operating system:window 10
Graphics card:3060rtx
Blender Version
Broken: 4.5, 5.1
Worked: OpenGL backend
Short Description
while using compositor transform node blender kept crashing dont know the cause
i have provided the blend file and the image i dont know if image has any relation to it tho
edit: also provided a obs video if blender does not crash on your side
Steps to Reproduce
LLM Reasoning
Got it, let's analyze these two bug reports. First, look at the descriptions and steps.
Bug report 1 is about a crash when connecting Render Layers to Viewer AND Group Output's non-first input. The steps involve specific nodes: Render Layers, Viewer, Group Output, with connections to Viewer and a non-first slot in Group Output, then render.
Bug report 2 is about a crash when an image is connected to a transform compositor node (and mentions Vulkan backend). The steps are open scene, load image into image node, render. The description is vague but mentions transform node, not the same nodes as report 1.
The key parts: Report 1's issue is specific to Render Layers → Viewer + Group Output non-first input. Report 2 is about transform node and image loading. Different setups, different nodes involved. So they aren't the same issue. Therefore, answer is No.
JSON Data
{
"llm_judgement": false,
"processing_time": 13.312993,
"duplicate_report_number": "155302"
}
Report flagged as NOT a duplicate by LLM
Rendering this Compsite Results in Crash
https://projects.blender.org/blender/blender/issues/151854
System Information
Operating system: Linux-6.8.0-90-generic-x86_64-with-glibc2.39 64 Bits, X11 UI
Graphics card: NVIDIA GeForce RTX 4070 Ti NVIDIA Corporation NVIDIA 580.95.05 Vulkan Backend
Blender Version
Broken: version: 5.0.1, branch: blender-v5.0-release, commit date: 2025-12-15 16:36, hash:
a3db93c5b259Worked: (newest version of Blender that worked as expected)
Short description of error
Attempting to render this composite caused Blender 5.1 to crash. Blender 4.5 rendered without issue.
Exact steps for others to reproduce the error
Here, Blender 5.1 crashes in both CPU and GPU mode. I tested with 4.5 and it rendered without a problem.
LLM Reasoning
Got it, let's analyze these two bug reports. First, look at the description and steps for each.
Bug Report 1: The issue is about crashing when Render Layers image output is connected to both Viewer node and Group Output (but not first Image item). Steps involve creating specific nodes in Compositor, connecting them, then rendering.
Bug Report 2: Title says "Rendering this Composite Results in Crash". The steps are opening an attached file, replacing images, setting output, rendering. But the description mentions it's a composite, but the steps don't specify the node setup like Bug 1 does. Also, Bug 1 has a very specific node connection scenario (Render Layers to Viewer and Group Output non-first slot), while Bug 2 is more general about a composite causing crash, with no details on node connections.
Since the descriptions and steps are different—Bug 1 has a precise node setup, Bug 2 is vague about the composite structure—they don't seem to be the same issue. So the answer is No.
JSON Data
{
"llm_judgement": false,
"processing_time": 14.810785,
"duplicate_report_number": "151854"
}
Report flagged as NOT a duplicate by LLM
Node editors: Crash when main tree is connected to Group Input node
https://projects.blender.org/blender/blender/issues/137943
System Information
Operating system: Linux-6.13.11-gentoo-dist-x86_64-AMD_Ryzen_9_9950X_16-Core_Processor-with-glibc2.40 64 Bits, WAYLAND UI
Graphics card: NVIDIA GeForce RTX 3080/PCIe/SSE2 NVIDIA Corporation 4.6.0 NVIDIA 570.86.16 Opengl Backend
Blender Version
Broken: version: 4.5.0 Alpha, branch: main, commit date: 2025-04-21 17:28, hash:
d791ea7cc2c6Broken: 4.4
Worked: ?
Short description of error
If a Group Input node is present in the main node tree and is connected to the output (directly or indirectly through other nodes), Blender crashes when rendering.
Exact steps for others to reproduce the error
Render the following node tree in the compositor:
Or the following in the shader editor:
Note: a group input can't be added from the menu, but you can add it by copying it from a node group.
LLM Reasoning
Got it, let's analyze these two bug reports. First, look at the descriptions and steps to reproduce.
Bug Report 1 is about crashing when Render Layers' image output is connected to both a Viewer node and a Group Output (but not the first Image item). The steps involve connecting Render Layers to Viewer and then to a non-first slot in Group Output, then rendering.
Bug Report 2 is about crashing when the main tree's Group Input node is connected to an output (directly or indirectly), in compositor or shader editor. Steps mention connecting Group Input to output nodes.
The key here is the nature of the issue: Bug 1 is specific to Render Layers + Viewer + Group Output (non-first slot) causing crash on render. Bug 2 is about Group Input connected to output (any, maybe) causing crash. These are different scenarios—one involves Render Layers and Viewer with Group Output slots, the other involves Group Input in main tree. So they're not the same issue. Therefore, the answer is No.
JSON Data
{
"llm_judgement": false,
"processing_time": 15.072351,
"duplicate_report_number": "137943"
}
Report flagged as NOT a duplicate by LLM
Frequent crashing during compositing - Blender 5.1
https://projects.blender.org/blender/blender/issues/156334
System Information
Operating system: Windows-11-10.0.26200-SP0 64 Bits
Graphics card: NVIDIA GeForce RTX 5070 NVIDIA Corporation NVIDIA 595.97 Vulkan Backend
Blender Version
Broken: version: 5.1.0, branch: blender-v5.1-release, commit date: 2026-03-16 18:50, hash:
adfe2921d5f3Worked: 5.0
Short description of error
After downloading v5.1, rendering often crashes during compisiting phase. Blender also sometimes crashes when opedning compsitor while render is ongoing.
I am attaching latest crash log.
Exact steps for others to reproduce the error
Render -> Render ImageLLM Reasoning
Got it, let's analyze these two bug reports. First, look at the description and steps for each.
Bug report 1 is very specific: crashing when Render Layers' image output is connected to both Viewer node and Group Output (but not first Image item). The steps are detailed with nodes in compositor, connecting to 2nd+ slot of Group Output.
Bug report 2 is more general: frequent crashes during compositing, sometimes when opening compositor while rendering. Steps involve using provided blend files and rendering, no specific node connections mentioned like in bug 1.
The key difference is the cause: bug 1 has a precise setup (specific nodes and connections), bug 2 is vague about the setup, just mentions crashes during compositing. So they don't describe the same issue. Therefore, answer is No.
JSON Data
{
"llm_judgement": false,
"processing_time": 12.955328000000002,
"duplicate_report_number": "156334"
}
Report flagged as NOT a duplicate by LLM
Tabbing into Compositor NodeGroup is Crashing Blender 5.0 Alpha
https://projects.blender.org/blender/blender/issues/143892
System Information
Operating system: Windows-11-10.0.26100-SP0 64 Bits
Graphics card: NVIDIA GeForce RTX 2070 NVIDIA Corporation NVIDIA 560.94 Vulkan Backend
Blender Version
Broken: version: 5.0.0 Alpha, branch: main, commit date: 2025-08-02 20:28, hash:
77563587cd33Worked: 4.5.0
Short description of error
Crash when entering node group during biewport compositing
I've tried to copy the compositor setup of this video: The Secret to Rendering Vibrant... at 9:31 and 9:51 (Poorly, but that's beside the point).
Exact steps for others to reproduce the error
Tabto enter selected node groupFrom author:
After turning on rendered mode and activating viewport compositing, I tabbed into the node group I created which led to Blender crashing.
Weirdly even connecting just a value node to the group output will result in Blender crashing as long as the node group is not muted and in the image chain.
Thanks in advance :)
LLM Reasoning
Got it, let's analyze these two bug reports. First, look at the descriptions and steps.
Bug report 1 is about a crash when connecting Render Layers to Viewer AND Group Output (but not first slot). The steps involve setting up those nodes in Compositor, connecting specific outputs, then rendering.
Bug report 2 is about crashing when tabbing into a NodeGroup during viewport compositing, even with simple connections like value node to group output. The steps are opening a file, enabling viewport compositing, tabbing into the node group.
The issues seem different: one is about render time crash with specific node connections (Render Layers + Viewer + Group Output non-first slot), the other is about crashing when entering a node group during viewport compositing. The contexts (render vs viewport compositing) and triggers (node connections vs tabbing into group) are distinct. So they're not the same issue.
JSON Data
{
"llm_judgement": false,
"processing_time": 14.036847,
"duplicate_report_number": "143892"
}
